SIGNROLLER 3617 Pneumatic Flatbed Applicator Worktable | 5×10 Sign Mounting Table

Contact us for more details

A New Applicator Table for Real Sign Production

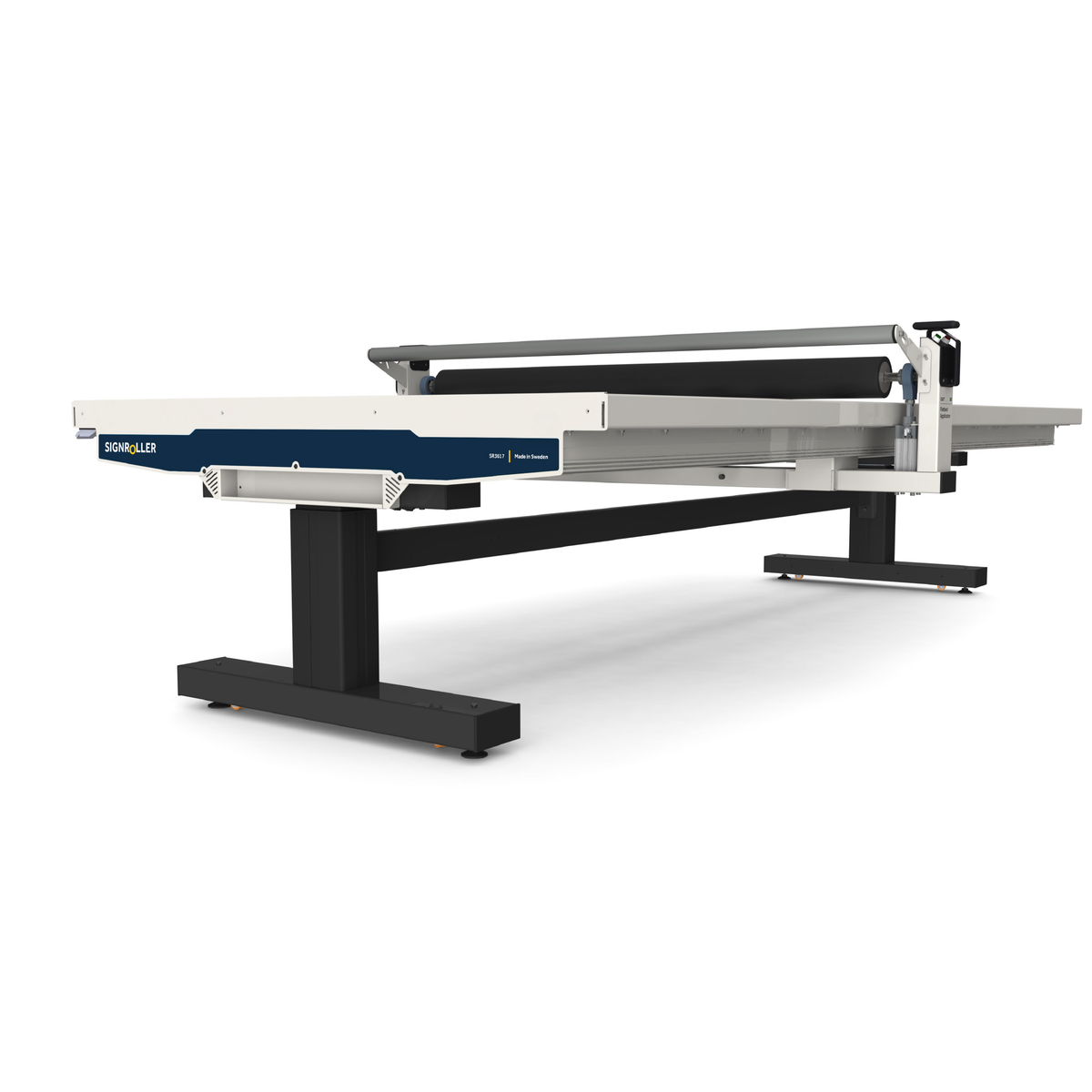

The SIGNROLLER 3617 is a professional pneumatic flatbed applicator worktable engineered to handle the daily demands of sign and graphics production.

Designed around a true 5×10 production workspace, this system allows operators to mount, laminate, and apply graphics with precision and control while maintaining efficient workflow around the table.

The two-pillar open frame design provides improved access to materials while maintaining stability at full working height. Combined with pneumatic roller control, illuminated work surface, and ergonomic height adjustment, the SIGNROLLER 3617 delivers consistent results across a wide range of signage applications.

Ideal for sign shops, print providers, wrap professionals, and graphics manufacturers requiring reliable mounting and laminating capabilities.

Technical Specifications

Specification Details
Model SIGNROLLER 3617
Part Number SR3617
Table Length 3640 mm (11 ft 3 in)
Table Width 1720 mm (5 ft 8 in)
Working Area Length 3368 mm (11 ft 1 in)
Working Area Width / Roller 1650 mm (5 ft 5 in)
Overall Width 2080 mm (6 ft 10 in)
Maximum Substrate Thickness 0–70 mm (0–2.7 in)
Work Height 800–1100 mm (2 ft 8 in – 3 ft 7 in)
Height Adjustment Electronic
Bed Surface Safety Glass + Self-Healing Cutting Mat
Power Supply 230V / 50Hz (10A) or 120V / 60Hz (15A)
Required Air Supply 6–8 bar (87–116 psi)
Warranty 3 Years
Feature Included
Glide Beam Roll Holder Included
Casters Included
Machine Leveling Feet Included
Illuminated Worktable Included
Roll Holder for Bed End Optional
Feature SIGNROLLER 3617 Typical Applicator Table
Workspace True 5×10 production workspace Tight workspace with limited margins
Roller Control Pneumatic roller pressure Manual roller systems
Operator Access Open two-pillar design Multi-leg frame limiting access
Visibility Illuminated safety glass worktable Standard solid table surface
Height Adjustment Electronic ergonomic adjustment Fixed or limited adjustment
Panel Handling Optimized for full 5×10 panels Often requires repositioning panels
Application Description
Sign Panel Mounting Mount printed graphics to rigid substrates
Large Format Lamination Apply protective overlaminate films
Display Graphics Mount graphics for retail and trade shows
Foamboard Mounting Precise mounting of foam and rigid boards
Window Graphics Prep Prepare vinyl graphics before installation
Wide Format Finishing Finishing workstation for print shops
Download PDF
